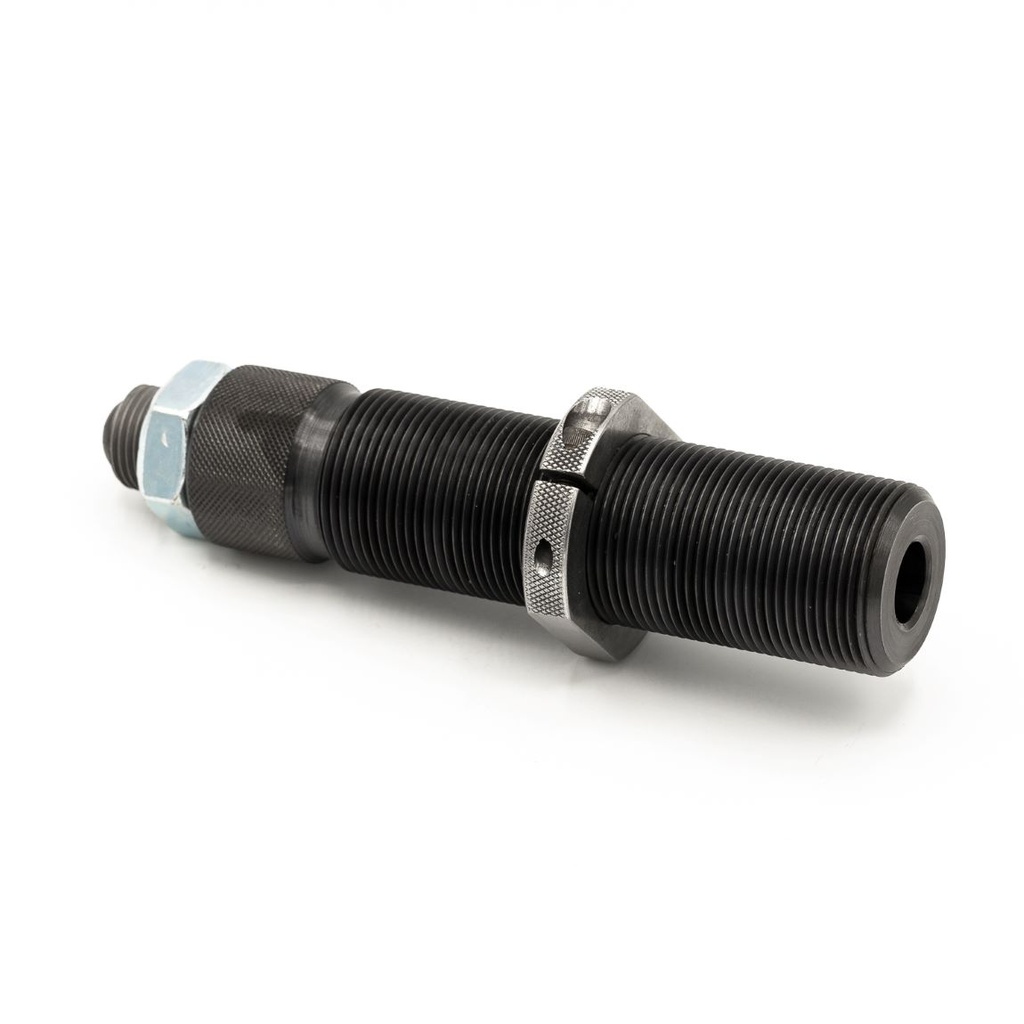

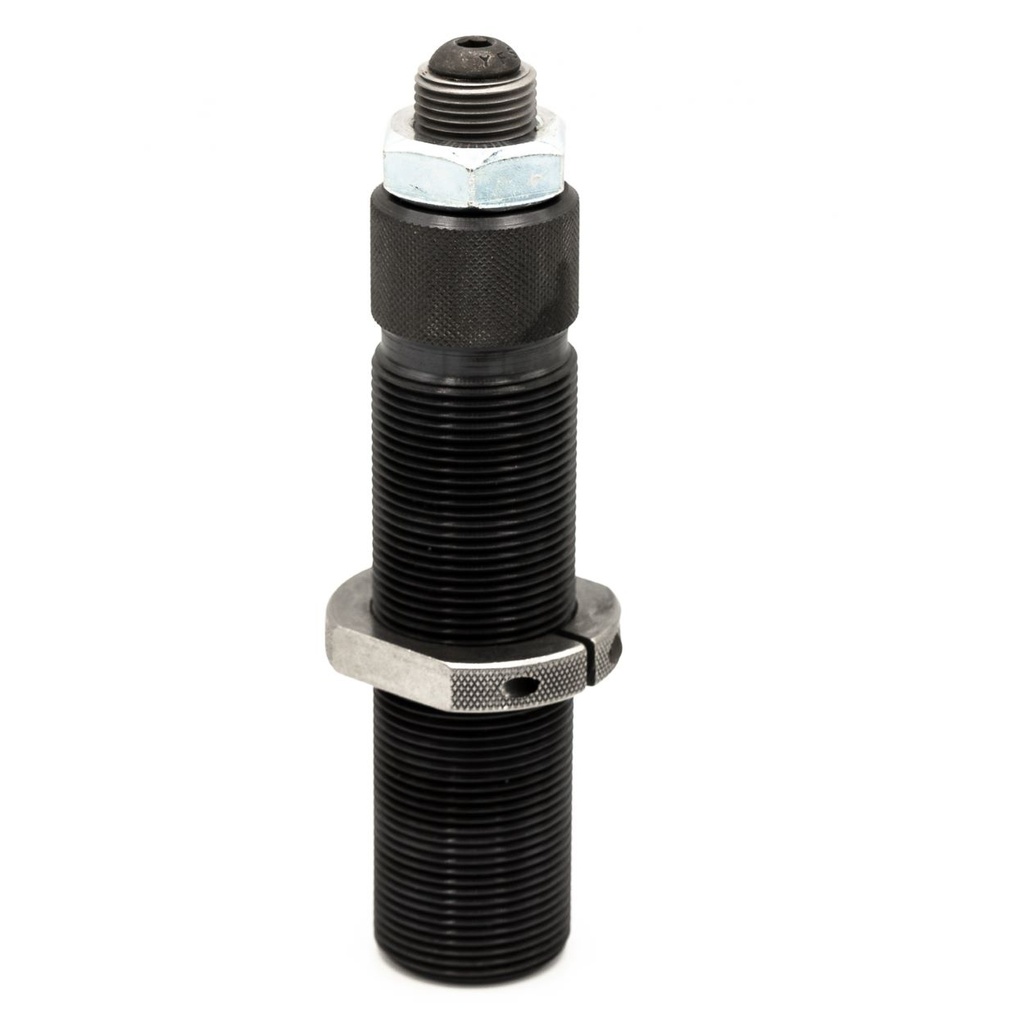

Corbin FPH-2-H Positive Stop Punch Holder
Achieve Precise Bullet Weight Control with Advanced Punch Alignment
The Corbin FPH-2-H Positive Stop Punch Holder is engineered to provide exceptional control over bullet weight during swaging operations. Designed for use with Corbin's CHP-1 and CSP-2H hydraulic presses, this holder ensures precise punch positioning and consistent bullet formation and is an upgrade to the standard Floating Punch holder that would come with the presses.
Key Features:
- Enhanced Precision: The hardened steel construction absorbs the full force of the press, allowing the punch holder to serve as a definitive stopping point at the top of the stroke. This design minimizes variations, ensuring consistent bullet weights.
- Adjustable Stroke Control: A stop screw at the top of the punch holder regulates the punch's insertion depth into the die. By adjusting this screw, users can fine-tune the stroke length, achieving desired bullet dimensions with accuracy. swagedies.com
- Efficient Punch Replacement: The holder features a magnetized threaded rod that aids in the easy removal and replacement of punches. A surrounding copper tube enhances the magnetic field, simplifying maintenance and reducing downtime.
Benefits:
- Consistent Bullet Formation: Minimizes weight variations, enhancing the uniformity of swaged bullets.swagedies.com
- User-Friendly Adjustments: Simplifies the process of setting and modifying stroke lengths to accommodate different bullet specifications.
- Streamlined Maintenance: Facilitates quick punch changes, maintaining production efficiency.
How It Works:
- Installation: Mount the FPH-2-H Positive Stop Punch Holder onto the CHP-1 or CSP-2H press, ensuring secure attachment.
- Punch Setup: Insert the desired punch into the holder. The magnetized threaded rod will assist in positioning and securing the punch.
- Stroke Adjustment: Adjust the stop screw to set the punch's insertion depth, tailoring the stroke length for specific bullet designs.
- Operation: With the press configured, initiate the swaging process. The positive stop feature will halt the punch at the predetermined position, ensuring consistent bullet weights.
- Punch Replacement: To replace the punch, remove the threaded rod using the magnetic assist, insert the new punch, and re-secure the rod.
Enhance Your Swaging Setup:
Integrating the FPH-2-H Positive Stop Punch Holder into your swaging process elevates precision and consistency. For optimal performance, consider pairing it with Corbin's CHP-1 Hydro-Press, which offers adjustable stroke lengths and programmable pressure settings to complement the holder's capabilities. swagedies.com+1yumpu.com+1
Why Choose the Corbin FPH-2-H Positive Stop Punch Holder?
The FPH-2-H is designed for reloaders seeking meticulous control over bullet specifications. Its robust construction, precise adjustability, and user-friendly features make it an invaluable tool for achieving high-quality swaged bullets.
- Main Purpose: Precisely controls bullet weight in swaging
- Material: Hardened tool steel
- Compatibility: Corbin's CHP-1 and CSP-2H hydraulic presses
- Adjustability: Allows for fine-tuning to achieve desired bullet specifications
- User-Friendly: Easy to install and operate
Benefits
- Ultimate Precision: Eliminates any drift in the ram for high-precision bullet swaging.
- Durability: Made from hardened tool steel for long-lasting performance.
- Versatility: Can be used for other precision tasks beyond bullet swaging.
- Ease of Use: Designed for straightforward installation and operation.
| Material | Steel |
| Threads | 1.5-12 |
