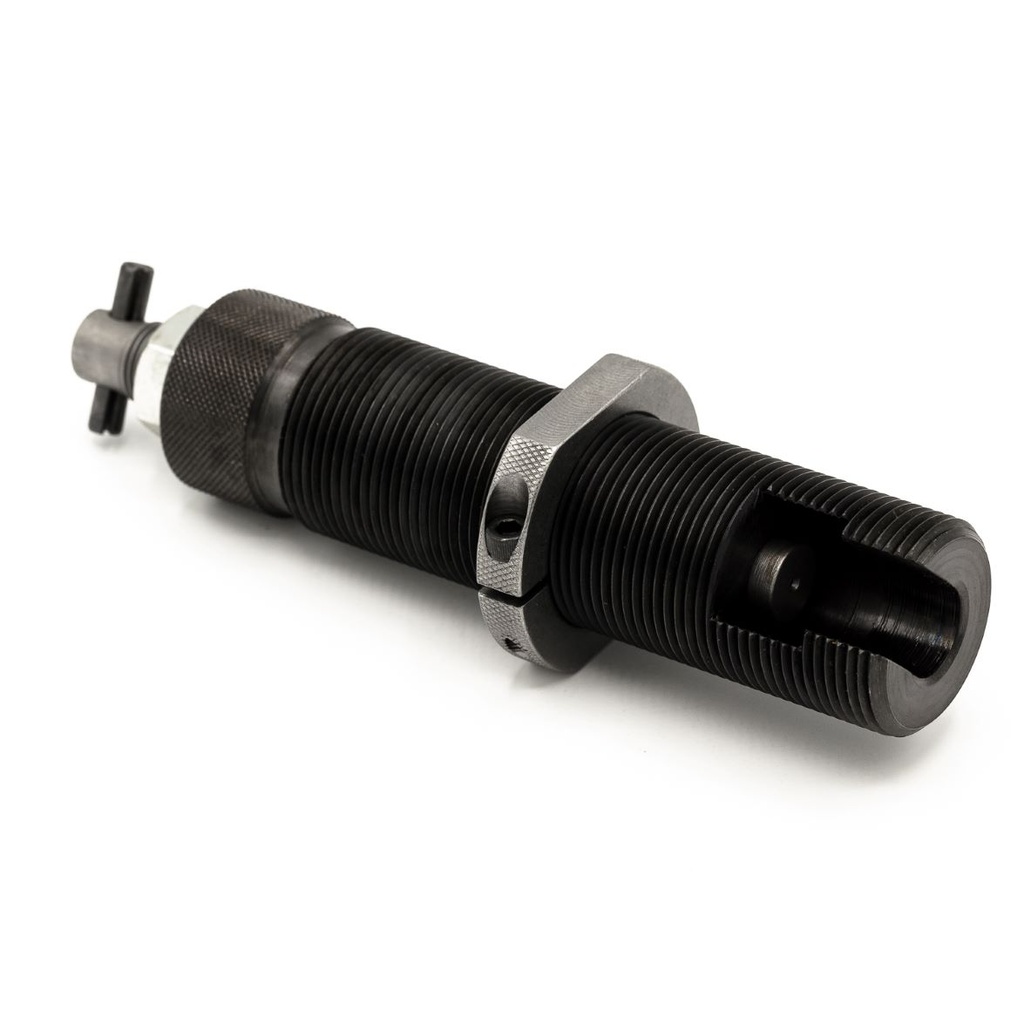

Corbin FPH-QC-H H Type Quick Change Punch Holder
Efficiently Handle Long Components with Rapid Punch Changes
The Corbin FPH-QC-H Quick Change Punch Holder is specifically designed to accommodate the swaging of extended components, such as tubing jackets for heavy 50 BMG bullets. This holder replaces the standard FPH-1-H floating punch holder, offering enhanced efficiency for operations involving longer materials.
Key Features:
- Quick Punch Insertion and Removal: Features a T-slot in the lower portion that allows the top (external) punch to be inserted and removed sideways. This design minimizes downtime between operations involving long components. swagedies.com
- Adjustable Punch Clearance: Equipped with a long threaded rod to adjust the clearance between the punch head and the top of the rod. This adjustability allows users to set the desired drag or ease of insertion when loading components.
- Optimized for Long Components: Ideal for swaging operations requiring the insertion and removal of extended materials, eliminating the need to adjust the punch holder position with each stroke. swagedies.com
Benefits:
- Increased Efficiency: Streamlines the swaging process by allowing quick transitions between different bullet designs or sizes without extensive setup changes. corbins.com
- Enhanced Flexibility: Facilitates the handling of various bullet designs and sizes, making it a versatile addition to any swaging setup. corbins.com
- High-Quality Construction: Built to Corbin's stringent standards, ensuring durability and consistent performance in demanding swaging applications. corbins.com
When to Use:
The FPH-QC-H is particularly beneficial when working with components longer than standard sizes, such as heavy 50 BMG bullet jackets. Its quick-change design and adjustable features make it an essential tool for operations requiring frequent handling of extended materials.
Note:
For applications where the punch does not need to be removed to accommodate longer components, the standard FPH-1-H punch holder may be preferable. The FPH-QC-H is recommended when rapid punch changes are essential to your workflow.
- Main Purpose: Enables rapid punch changes in Corbin Hydro-Press and Mega-Mite hand press
- Compatibility: Works with -H type dies
- Ease of Use: Designed for quick and easy punch changes
Benefits
- Efficiency: Speeds up the bullet-making process by allowing quick punch changes.
- Flexibility: Ideal for those who work on multiple bullet designs or sizes.
- Quality: Built to Corbin's high standards for durability and performance.
- Ease of Installation: Quick and straightforward setup.
| Material | Steel |
| Threads | 1.5-12 |
