S-Press PCP Airgun Hollow Ogive Preform Die and Punch Add-On
Enhance Your Airgun Slug Precision with Hollow Ogive Design
Upgrade your existing S-Press PCP Airgun Point Forming Die with the Hollow Ogive Preform Die and Punch Add-On. This set enables you to craft airgun slugs featuring a hollow ogive—a design known for improved aerodynamics and penetration.
Advantages of Hollow Ogive Slugs:
- Enhanced Aerodynamics: The streamlined shape reduces air resistance, leading to flatter trajectories and increased accuracy.
- Improved Penetration: The design facilitates deeper penetration upon impact, making it effective for hunting applications.
- Weight Reduction: A hollow ogive allows for a longer projectile at a lighter weight, optimizing velocity without compromising stability.
Compatibility and Customization:
To ensure seamless integration with your current equipment, please provide the following information when placing your order:
-
Point Form Die Diameter: Specify the caliber of your existing point form die. Available options include:
- .177
- .217
- .218
- .250
- .300
- .357
- Custom sizes (please specify)

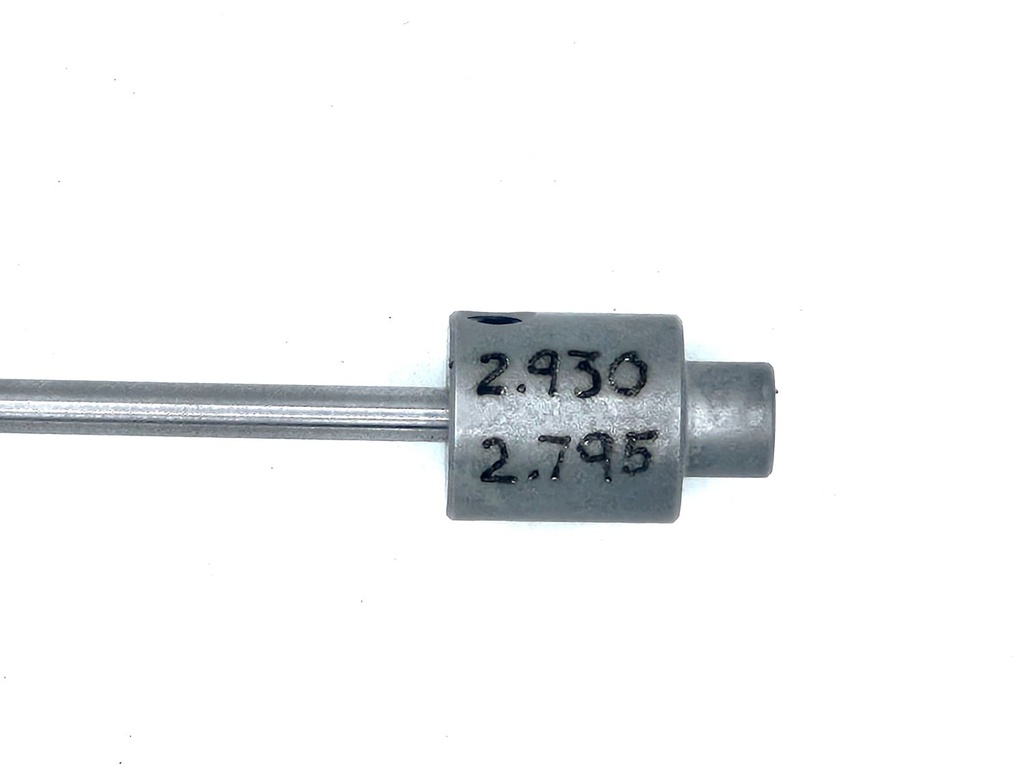

- Sync Numbers: Locate the two sync numbers marked on your current Hollow Point internal punch. These numbers are crucial for precise alignment and functionality. Refer to the provided image on the product page for identification. Enter both numbers during the ordering process to ensure accurate synchronization.
Brief Usage Instructions:
- Preparation: Ensure your S-Press is securely mounted and properly calibrated.

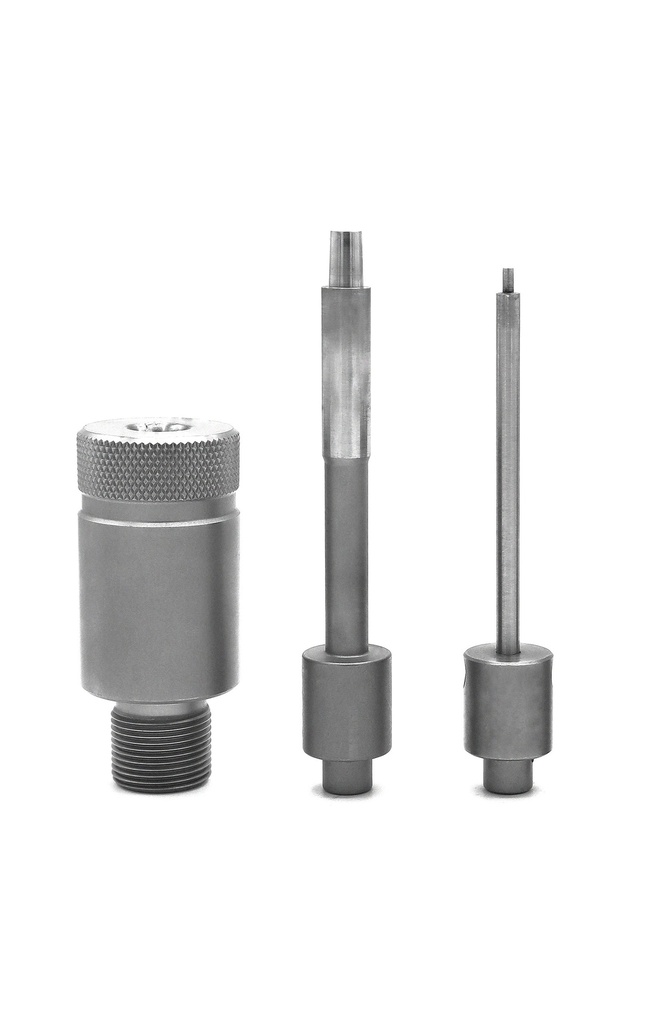

- Die Installation: Replace your current point form die with the Hollow Ogive Preform Die from this add-on set.swagedies.com+5swagedies.com+5youtube.com+5
- Punch Adjustment: Install the provided internal and external punches, ensuring they match the sync numbers you provided.
- Slug Formation: Follow standard swaging procedures to form your slugs, now featuring the hollow ogive design.
For detailed guidance, refer to the Corbin Handbook of Swaging or consult the instructional materials provided with your equipment.swage.com
Ordering Information:
When ordering, ensure you provide the exact die diameter and both sync numbers to guarantee compatibility and optimal performance. If you require assistance or have custom specifications, please contact Corbin's customer support for personalized service.
Note: This add-on is designed to complement your existing S-Press setup. Additional equipment or modifications are not necessary. Always follow safety guidelines and manufacturer instructions when operating swaging equipment.
| Material Material Material Material Material Material | Hardened Tool Steel Hardened Tool Steel Hardened Tool Steel Hardened Tool Steel Hardened Tool Steel Hardened Tool Steel |
| Diameter Diameter Diameter Diameter Diameter Diameter | .1770" .2170" .2180" .2500" .3000" .3570" |
This add-on is designed to upgrade your existing S-Press PCP Airgun Point Forming Die, enabling you to create airgun slugs with a hollow ogive design. Hollow ogive slugs offer enhanced aerodynamic efficiency, improved penetration, and adjustable weight, making them ideal for precision shooting and hunting applications.
The Hollow Ogive Preform Die and Punch Add-On is specifically designed for use with the Corbin S-Press. Attempting to use it with other presses may result in compatibility issues and suboptimal performance.

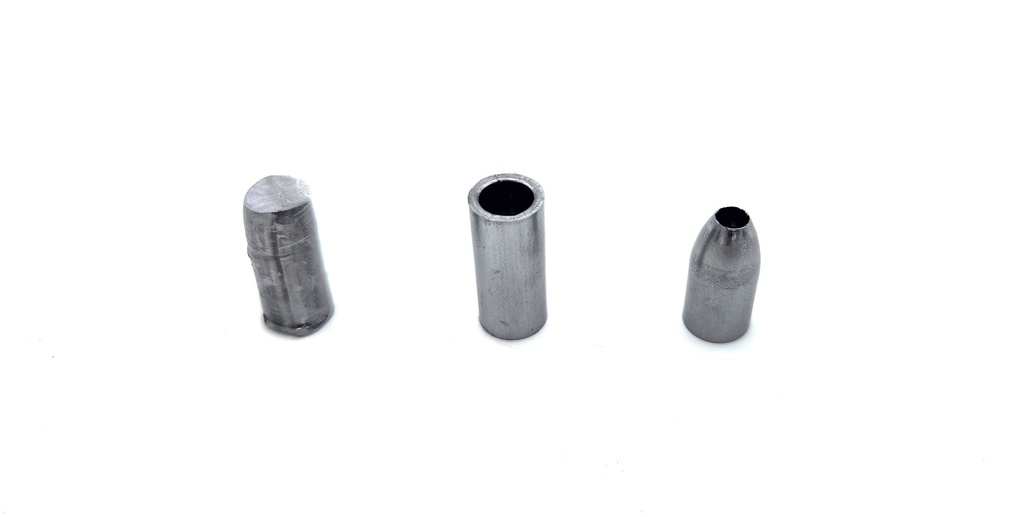

No additional modifications are necessary. The add-on is designed to integrate seamlessly with your current S-Press setup. Simply install the new die before your point form die and create a preform core with a hollow feature, and you will be equipped to produce hollow ogive slugs right out of the point form die.
The Hollow Ogive Preform Die and Punch Add-On is primarily designed to produce slugs with a hollow ogive nose. Base shapes are determined by the base punch used in conjunction with your existing point form die. To create different base shapes, you will need to purchase additional base punches separately.
For further information, instructional materials, or assistance, please visit Corbin's official website or contact our customer support team.
